EL6 DC Power Conversion for Starlink Standard (Gen3)

【Why DC powered】

The starlink consumes a significant amount of AC power, which is wasteful when powering it through a large inverter. Moreover, most vehicles and remote locations lack access to conventional 110V AC power outlets. The XTAR-Link EL6 DC power supply design seamlessly converts the Gen3 dish to work efficiently on DC power.

Get rid of the bulky starlink router and reduce power consumption Now! Simply connect the power cable to a 12V or 24V power source, connect to your preferred router, and you’ re online! 【 30 Days Return & 12 Months Warranty 】

【Why choose XTAR-LINK EL6】

Convenient & Cost-effective

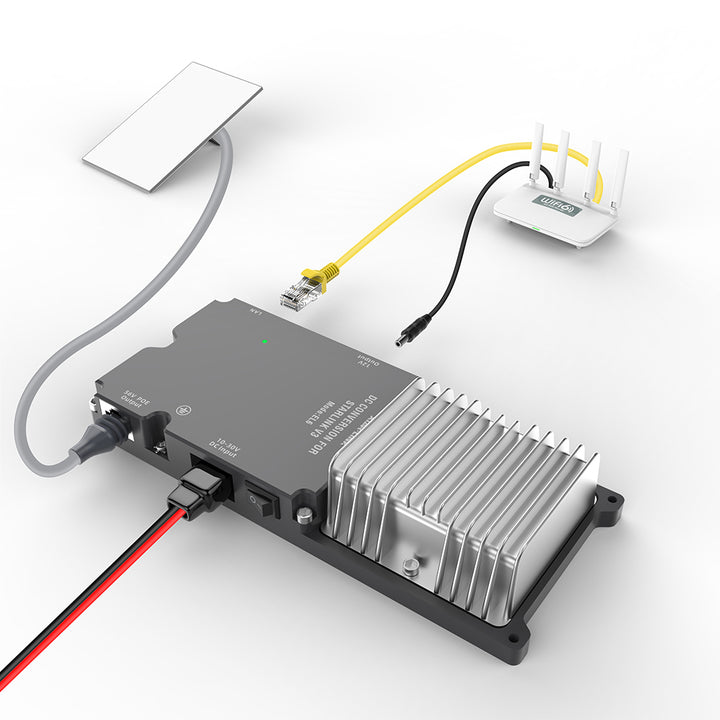

The XTAR-Link EL6 Conversion unit combines a 12/24V-56V converter, PoE injector, and 12V voltage regulator into one compact device, providing a professional and reliable power solution for the Gen 3 dish. This design reduces the complexity of DIY setups, minimizes the risks of operational failure, and saves on the cost of additional DIY components.

No Wire cutting, no modification of the dish or cable, and no voiding of your sta**ink warranty!

Dual Efficiency in Power Saving

It not only saves up to 30% of the power required to run starlink products but also reduces the energy consumption of the router. By using a built-in 12V regulator to directly connect to a 3rd-party router, it significantly reduces power loss from DC-AC-DC conversion.

 Multiple Power Connection

√ With the provided power cable (O-ring to Anderson), you can connect the starlink Dish directly to many 12/24V battery systems, such as those set in RVs, boats, and off-grid solar setups.

√ You can also connect the starlink Dish to the 12V/24V electrical system on any vehicle or portable power station. The XTAR EL6 allows you to take your starlink wherever your journey leads.

Full protection

Protected by a waterproof, shockproof, and corrosion-resistant metal casing, it also features a power switch, built-in reliable fuses, and a power indicator light to ensure a safe and stable connection to the starlink network in various environments.

【 XTAR-Link EL6】 Specification

• Power Input: 12V-30V/Anderson
• Output: 1x PoE Port, 1x WAN Port, 1x 12V DC Port (DC5521)
• Dimension: 20*21.5*5mm

【 KIT 】Include:  Choose KIT if you plan to use your own preferred 3rd party router

• 1x XTAR-Link EL6
• 1x Power cables O-ring to Anderson
• 1x Power cable for your 3rd Router (DC5521 Male to DC5521 Male)

【 SET 】Include:

• 1x XTAR-Link EL6
• 1x Power Cable for EL6: O-ring to Andersion

• 1x Power cable for 3rd Router(DC5521 Male to DC5521 Male)
• 1x RJ45 to RJ45 cable for connect 3rd Party router
• 1x 3rd Party Upgraded Router WiFi 6 (Up to 3000 Mbps of 2.4 GHz & 5 GHz total)

IMPORTANT NOTES
1) Using the snow melt function requires an additional 120W and cannot be used via a cigarette lighter plug, as most vehicles and power stations have a 10A limit.

2) For starlink to work properly under each mode, we advise powering the XTAR-Link DC conversion EL3 or EL6 with a minimum of a 12V 15A electrical system, or better yet, a 24V 10A system (which should provide sufficient amperage output) through a Ring terminal or hardwire connection.

If you need Gen 2 DC converter, please click here
